Developing a page in a setup requires the positioning of multiple objects. The positioning can be performed manually by tap/hold/drag or by using the object's on-screen edit dialog. Of course, the easiest and quickest way is tap/hold/drag, and a very useful aid for properly positioning the object is the alignment tool.

When in Edit On mode and an object is selected, the Object Design Menu appears at the top and bottom of the screen.


The alignment icon is:

The icon is inactiveby default. To activate it, just tap it.

When more than one object is on the page and the alignment icon is active with an object selected, horizontal or vertical lines will intersect with objects in the area. The intensity of the line(s) increases when the two objects' alignment matches either

• each's left or right edge
• each's top or bottom edge
• each's center

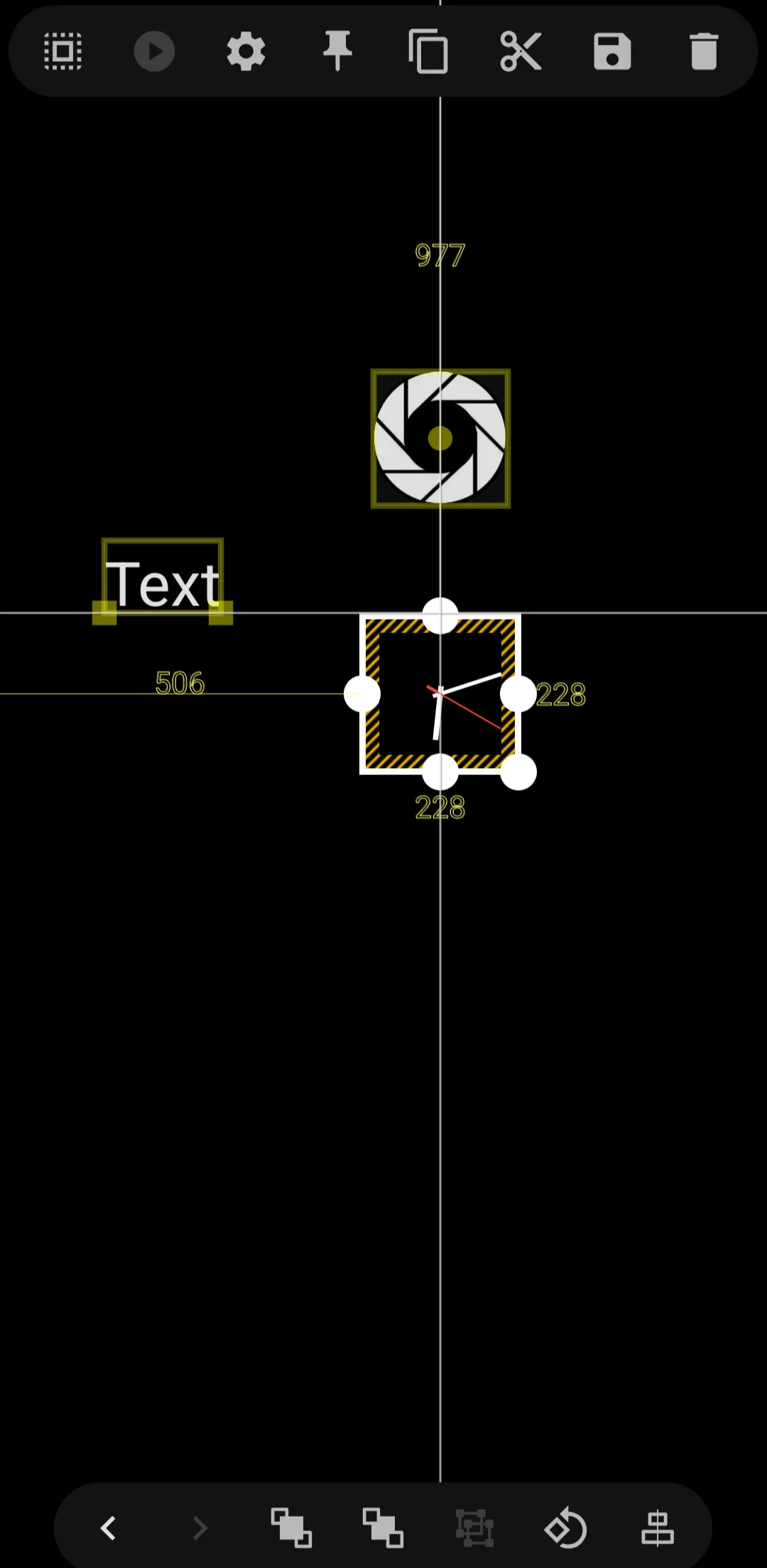

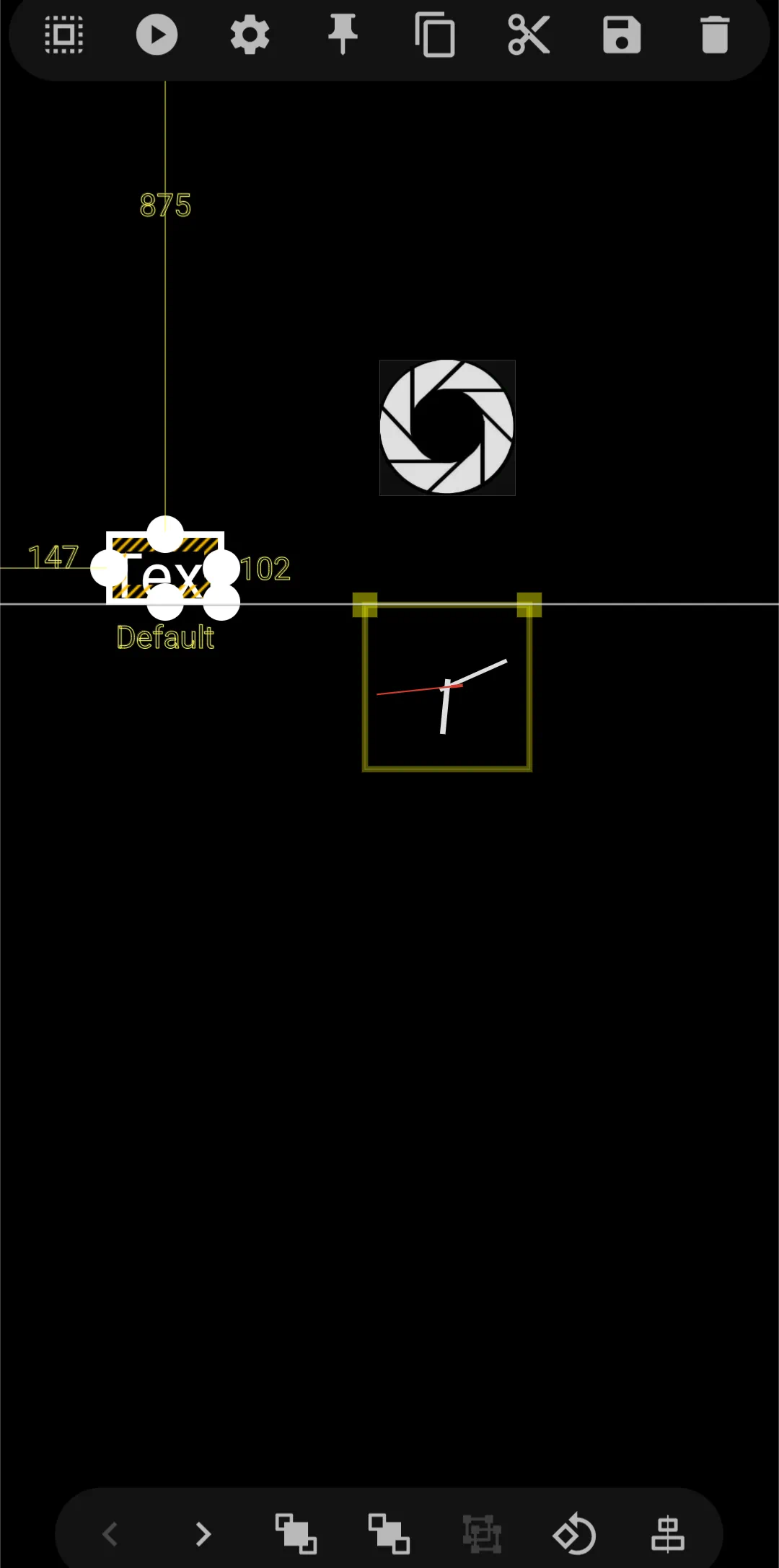

Here is an example of 3 objects on a page positioned for interesection:

Clock top edge to Text bottom edge Clock center to Shutter center	Text bottom edge to Clock top edge
